VINAUO Boat Trailer Lights ， LED Trailer Lights， Stop Brake Turning Tail Light Waterproof ， DOT Approval

VINAUO Boat Trailer Lights ，LED Trailer Lights， Stop Brake Turning Tail Light Waterproof ， DOT Approval

1. Waterproof Design: With an IP68 waterproof rating， trailer light kit can be used in harsh weather and terrain， enhancing visibility and reliability while reducing liability risks.
2. DOT Compliant: Our boat trailer light kits is designed with high-quality， corrosion-resistant materials that offer the best LED light clarity. All wires are made of pure copper， rather than traditional aluminum-coated copper wires.
3. Durable LED Lighting: Our LED bulbs last longer than standard incandescent bulbs， with a lifespan of 50，000 hours， reducing the need for frequent bulb replacements.
4. Wide Applicability: This kit contains side lights and tail lights is suitable for trailers ， agricultural tractors， and large trucks with a width of less than 80 inches. It provides a cost-effective and flexible lighting option.
5. Easy Installation: Our kit includes two stop turn signal LED marker lights， two amber gap lamps， wires， wire beams， license plate brackets， and stainless steel hardware， making it suitable for 12V trailer light replacement.

Wiring Instructions:

Trailer lights wire instructions:

1. White wire ： To the trailer's frame.
2. Brown wire ：To the running wire.
3. Yellow wire ： To the left stop/brake/turn signal wire.
4. Green wire ：To the right stop/brake/turn signal wire.

Side marker lights wire instructions:

White wire ：To the trailer's frame.
Black wire ：To the running wire.

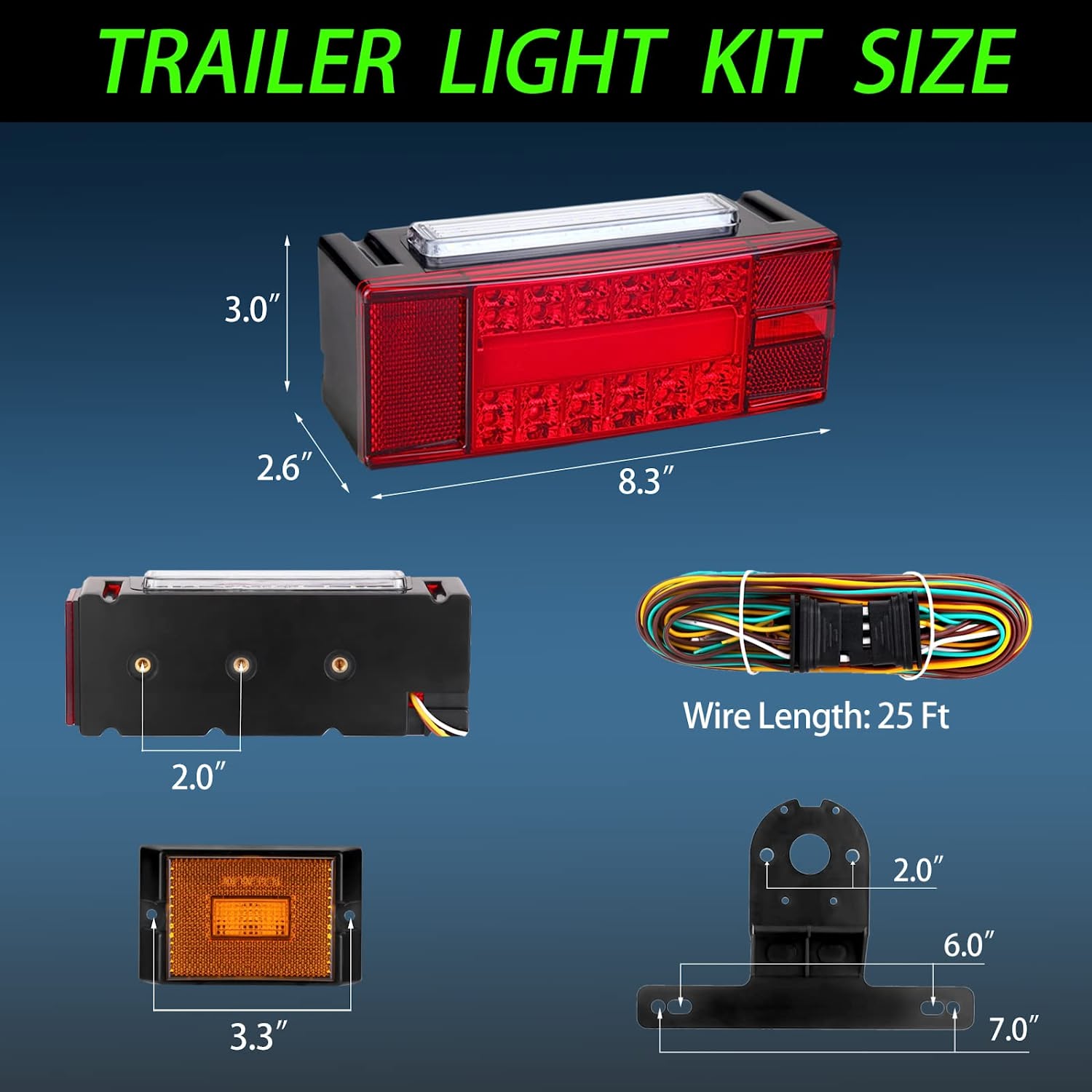

Specification:

1. Waterproof level: IP68
2. Light source: SMD LED
3. Lamp bead life: 50000h
4. Trailer light dimension: 8.4" x 3.0" x 3.2"
5. Trailer light mounting distance: 2”
6. Voltage: 12V DC
7. Material: PC， ABS

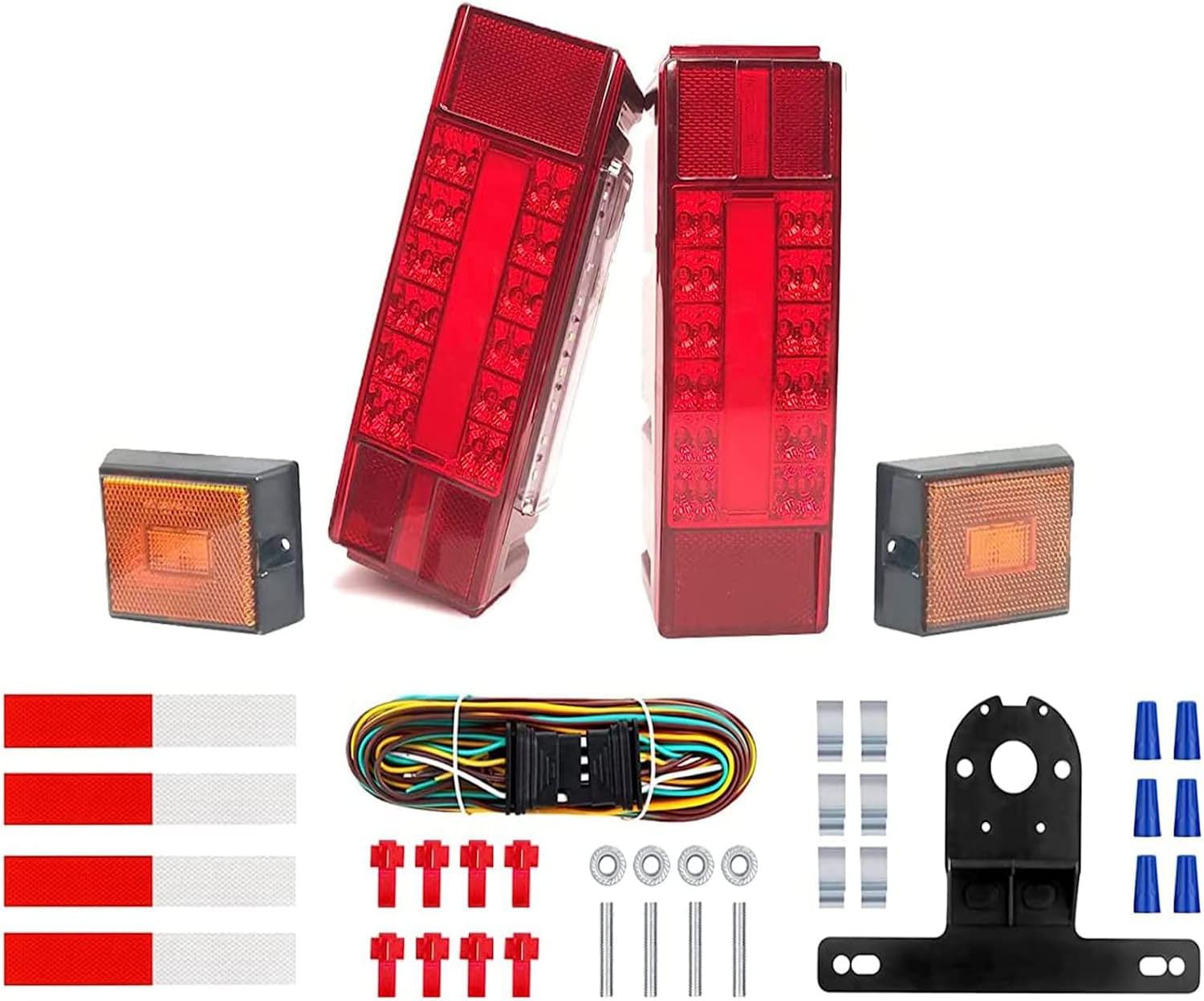

Trailer lights led kit include:

1. Trailer Light*2
2. Side mark light*2
3. Bracket*1
4. Reflective strip*4
5. 21ft male plug harness*1
6. 4ft female plug harness*1
7. Wiring clip*6
8. Wiring cap*6
9. Line hook*6
10. Screw*4
11. Nut*4

Application:
Perfect for 12V trailer lights replacement. Such as Utility trailer， boat trailer etc.

Notes:
Please seal the trailer light wire joints before using outdoors or underwater.

• • Super Bright Boat Trailer Light : Our flagship trailer lights use additional atomization strip design.      Trailer light lamp beads is 40% more than ordinary models.  Plus each lamp bead is equipped with a reflector.   Ensure your driving safe.  Fully comply with DOT standards.
• • IP68 Waterproof and 100% Submersible :  First trailer light lens and housing are welded by ultrasonic.   Second the internal circuit board is filled with silicone.  100% sealed.  Perfect for led boat trailer lights replacement.
• • Longer Service Life new led trailer lights : Use thickened high quality ABS housing + PC lens.       ALL lamp beads are SMD LED. Ensure led trailer lights can resist the aging caused by harsh weather and seawater.
• • Multi-functions Led Trailer Light Kit : Easy Assembly， Comfortable light， Durable， with a life span of several years， trailer lights， boat lights， led trailer lights， trailer light kit， utility trailer， boat trailer lights， trailer wiring harness kit， small utility trailer， led trailer marker lights， tow lights.
• • All-In-One Kit Trailer Light Kit : package has everything you need. Include Trailer Light*2， Side mark light*2， 25ft wiring harness*1， Bracket*1， Reflective strip*4 and other trailer wiring fixing parts.
